Applications

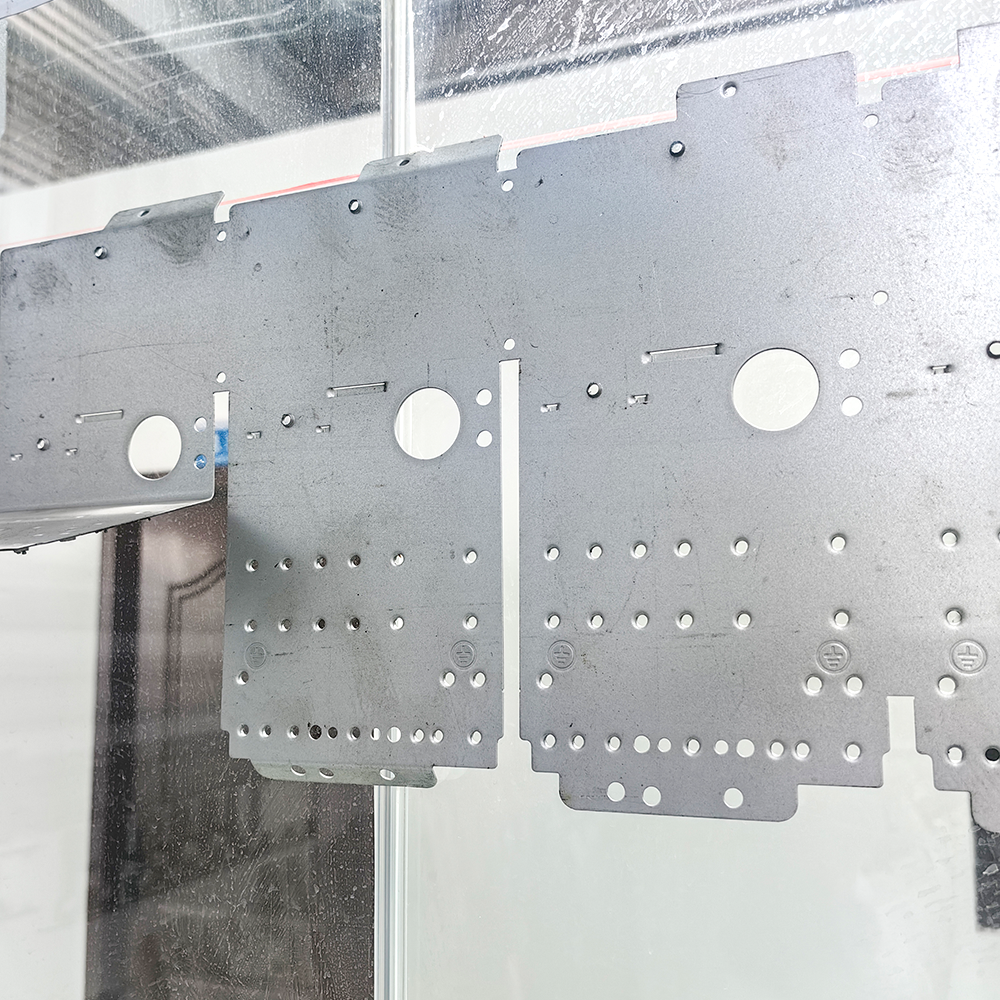

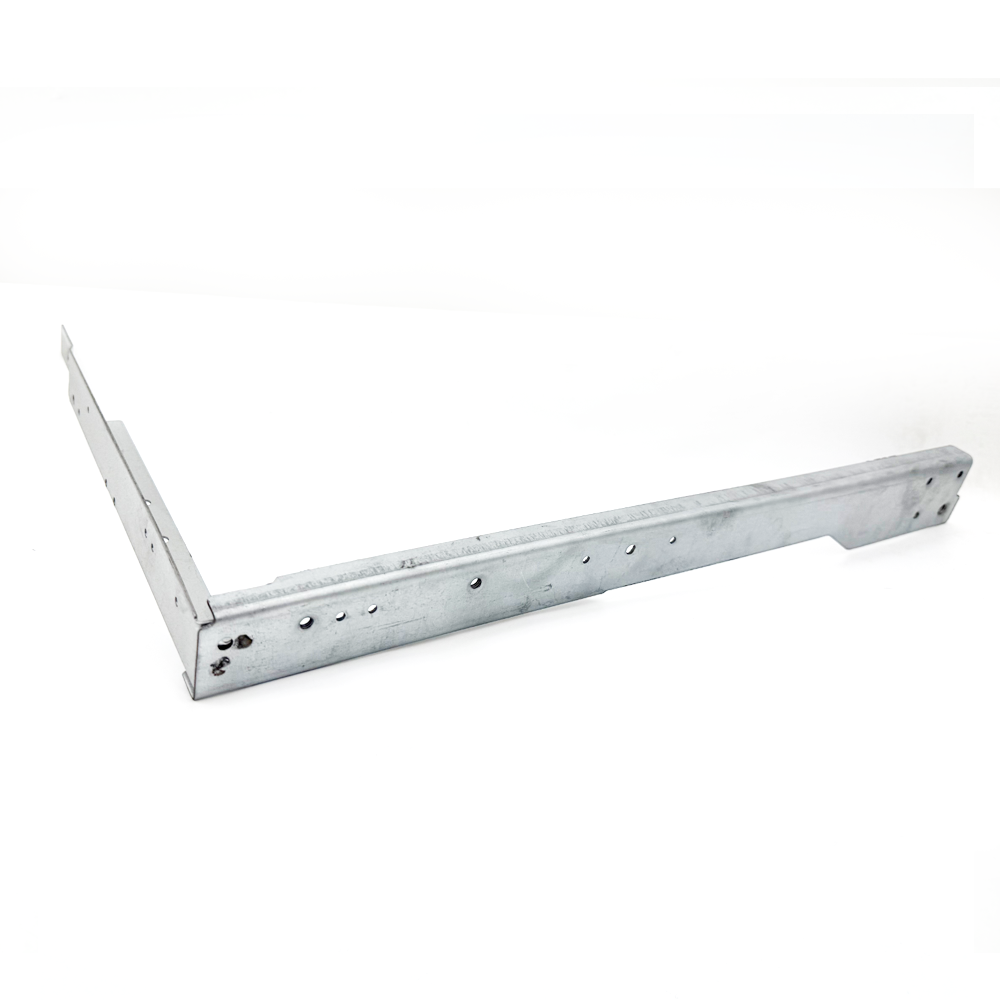

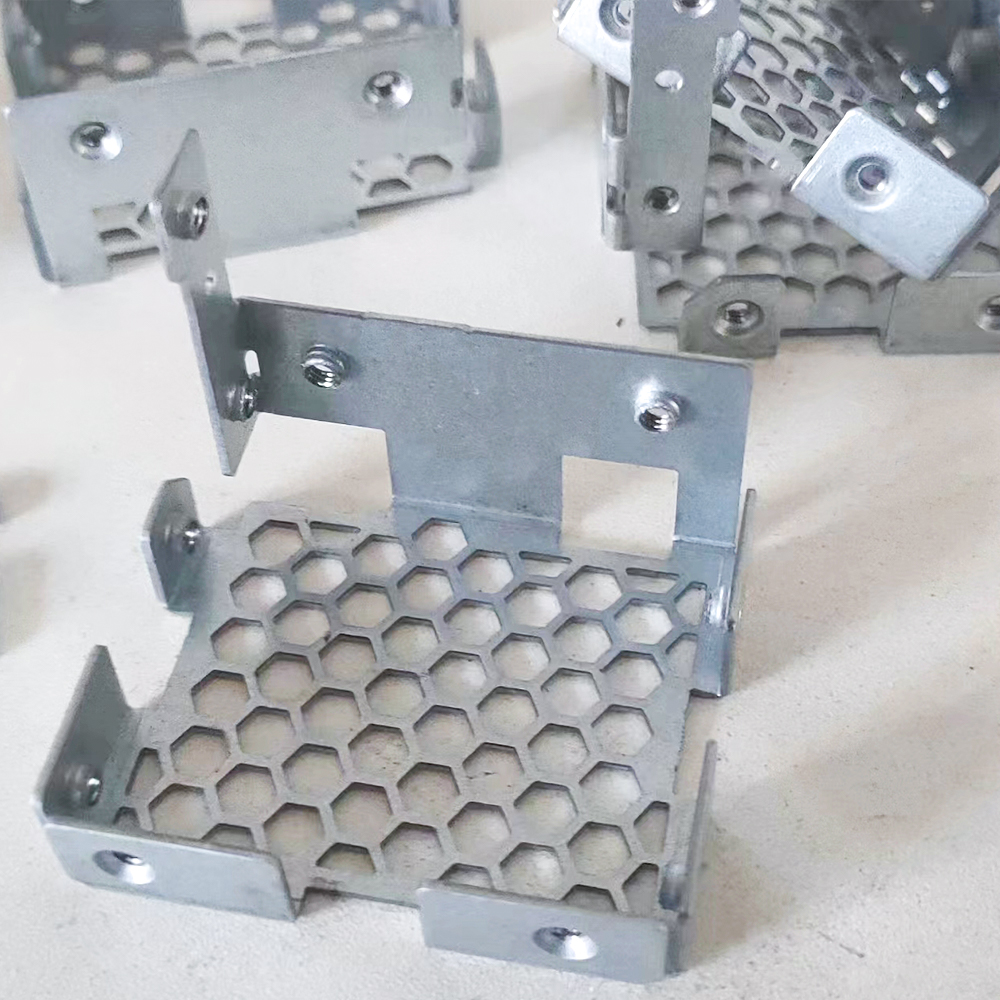

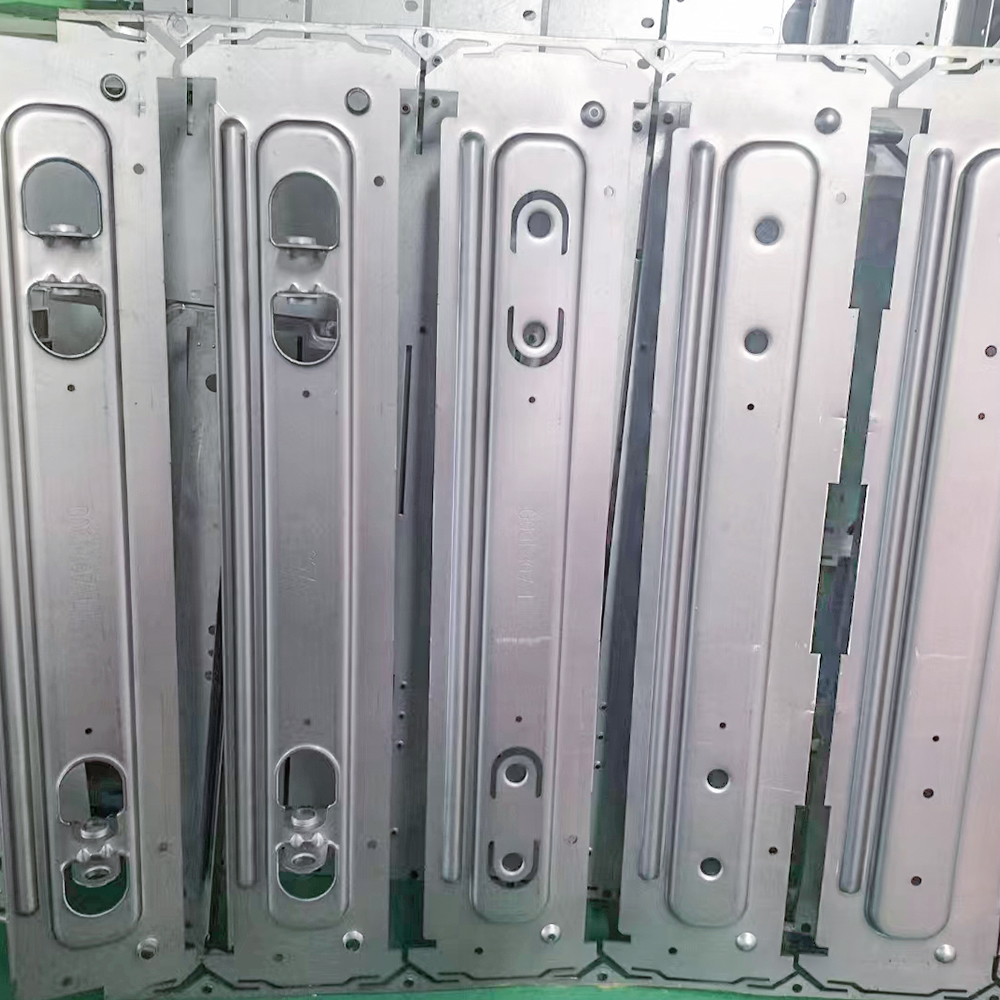

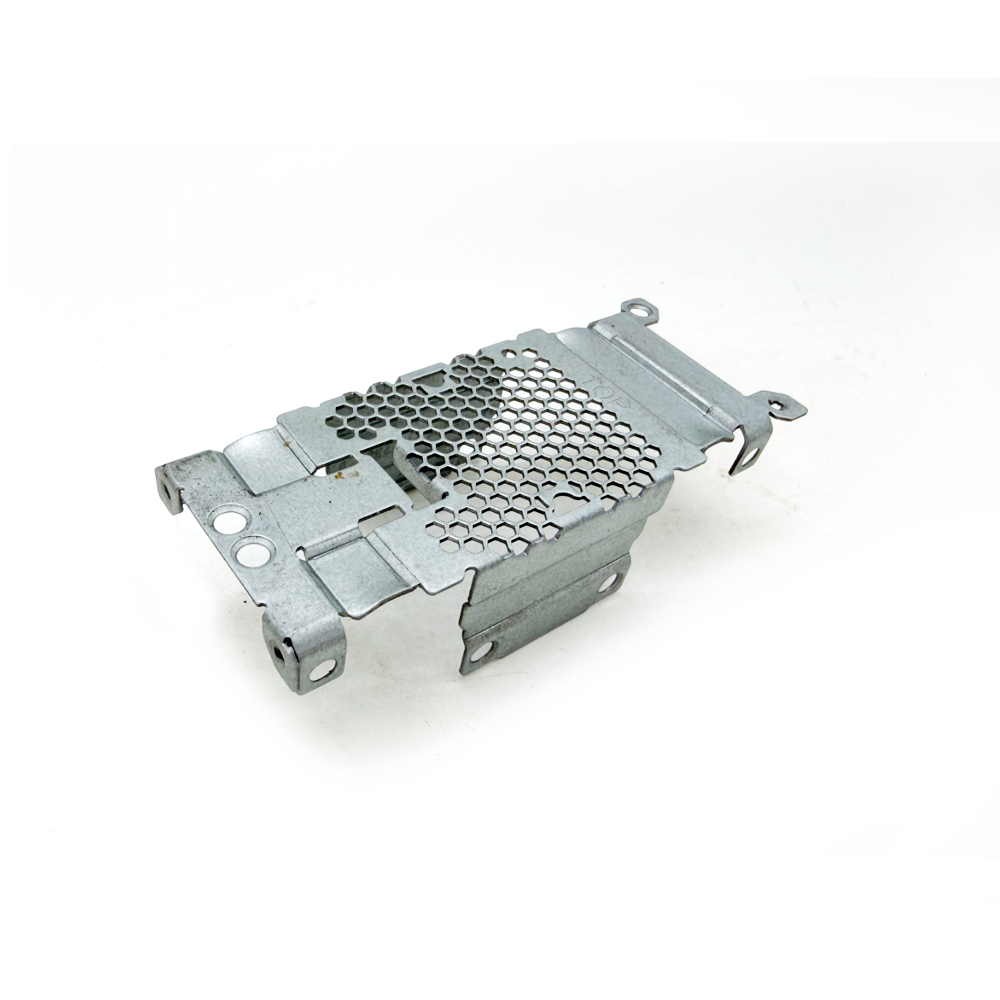

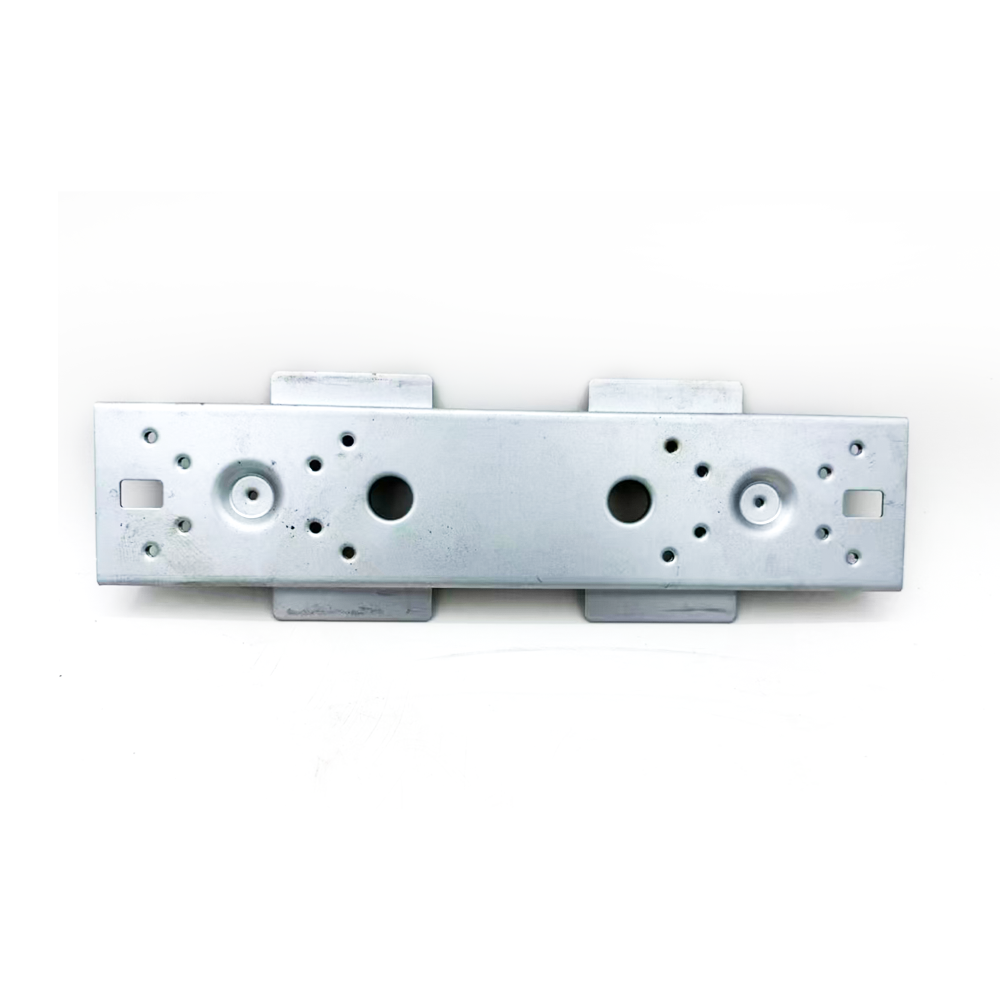

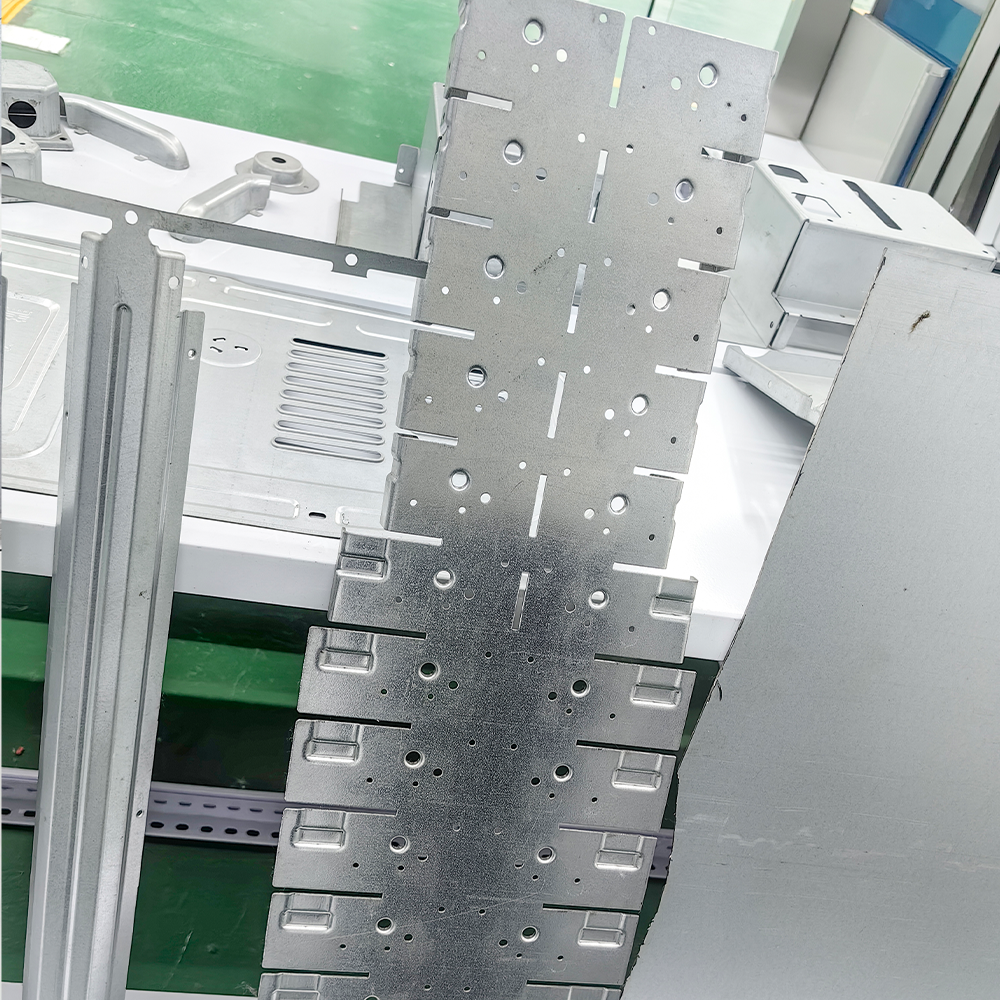

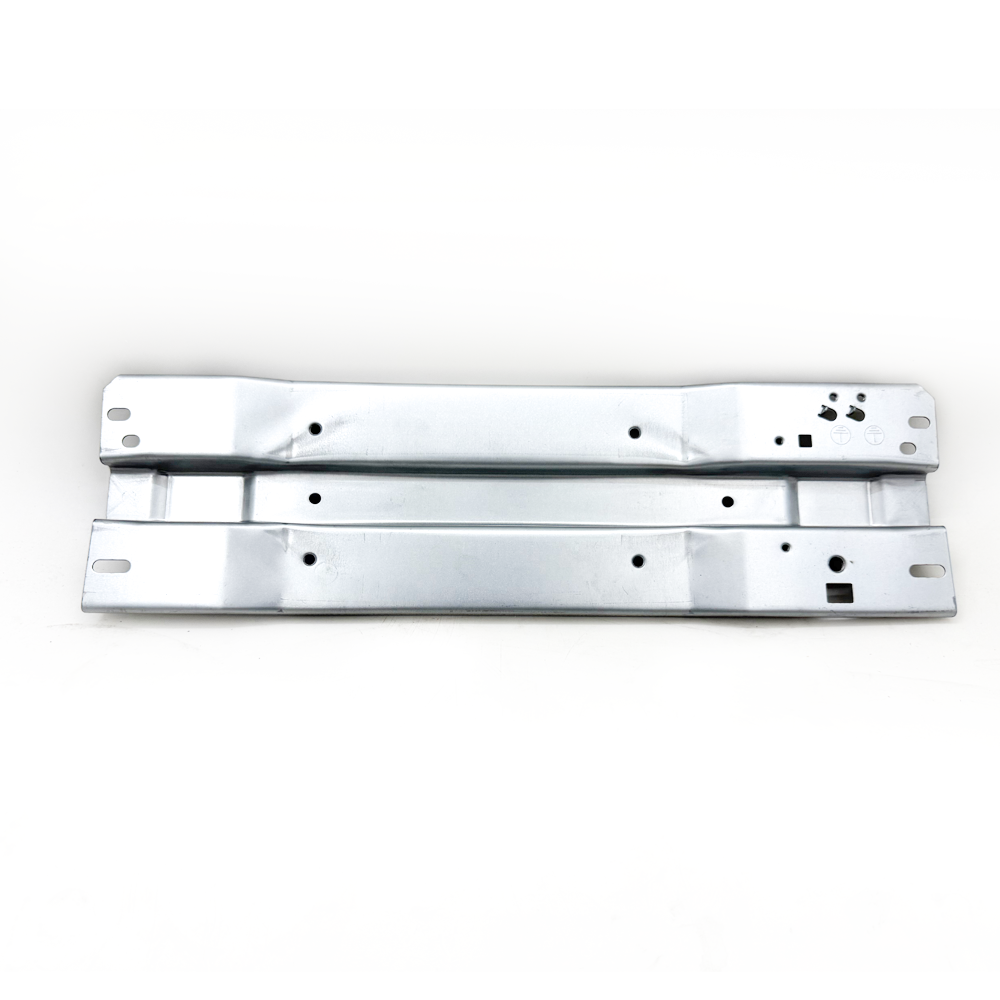

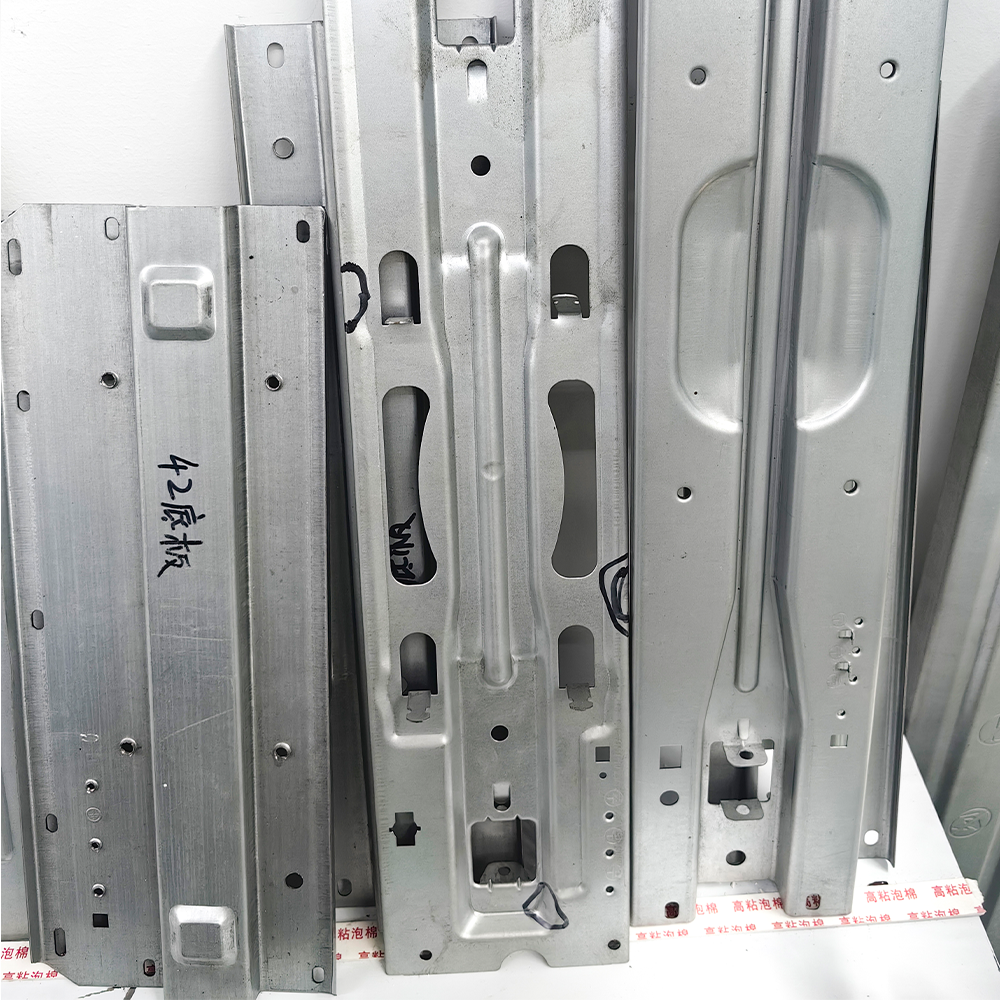

Applicable industries: electronic appliances, computer cases, auto parts, daily hardware, household appliances and other industries.

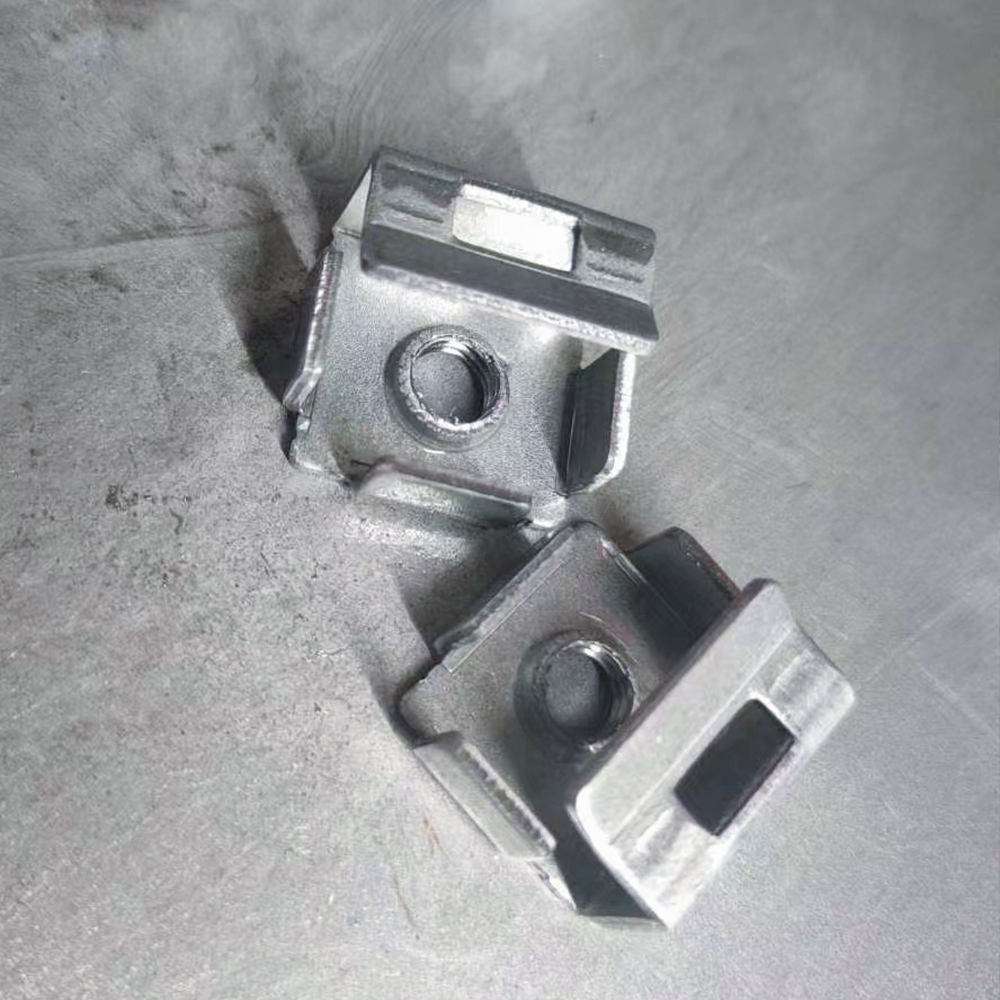

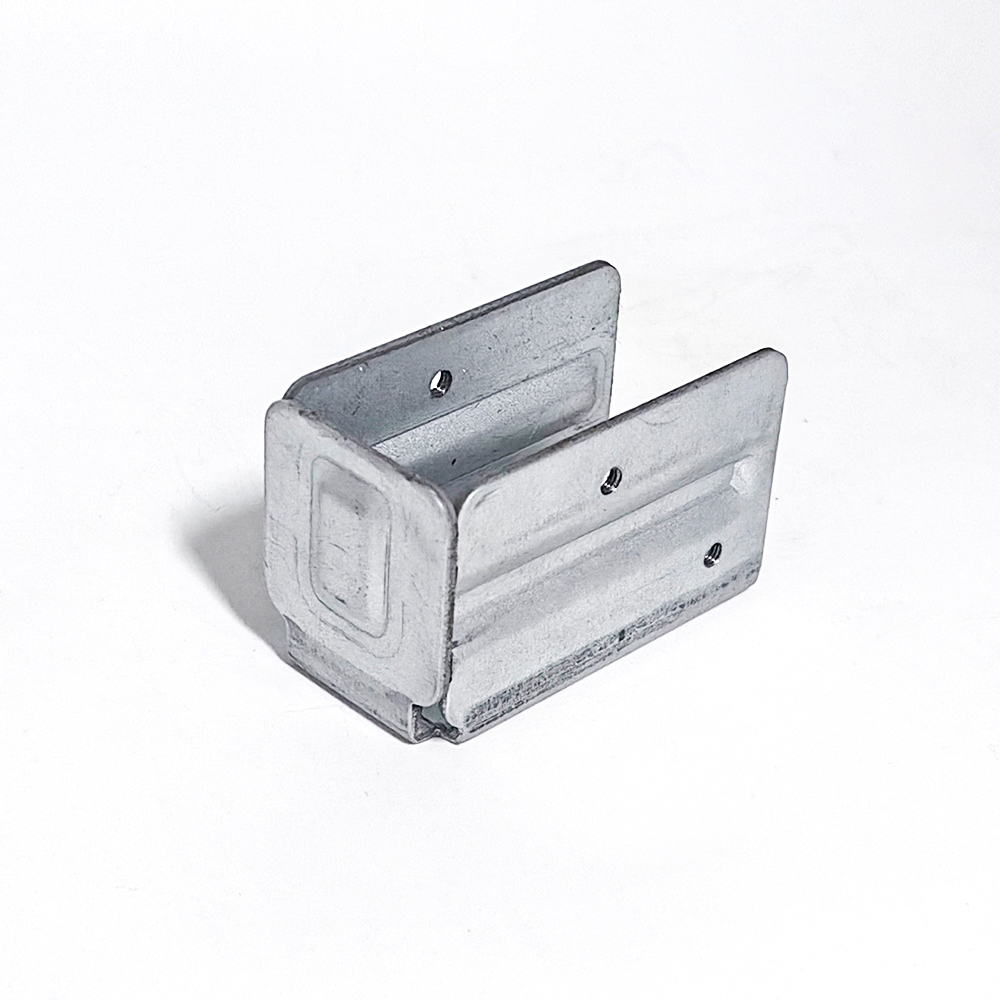

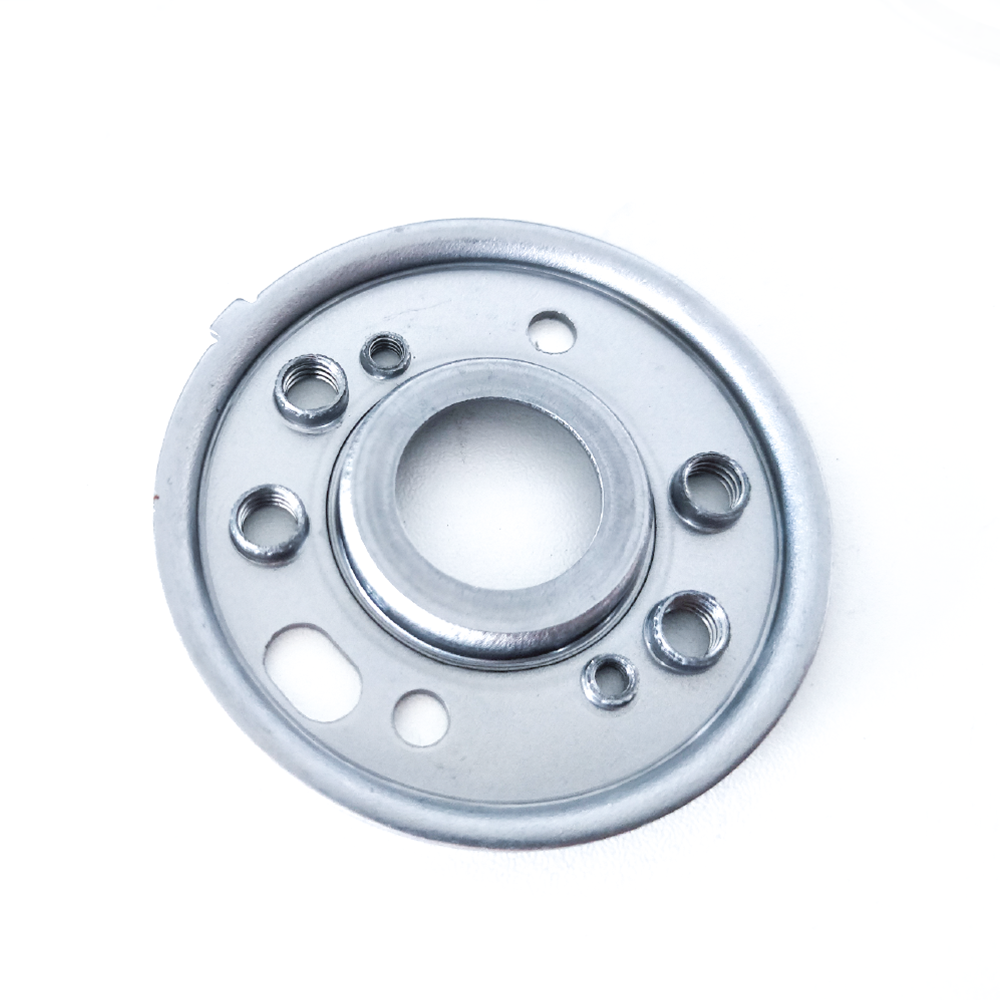

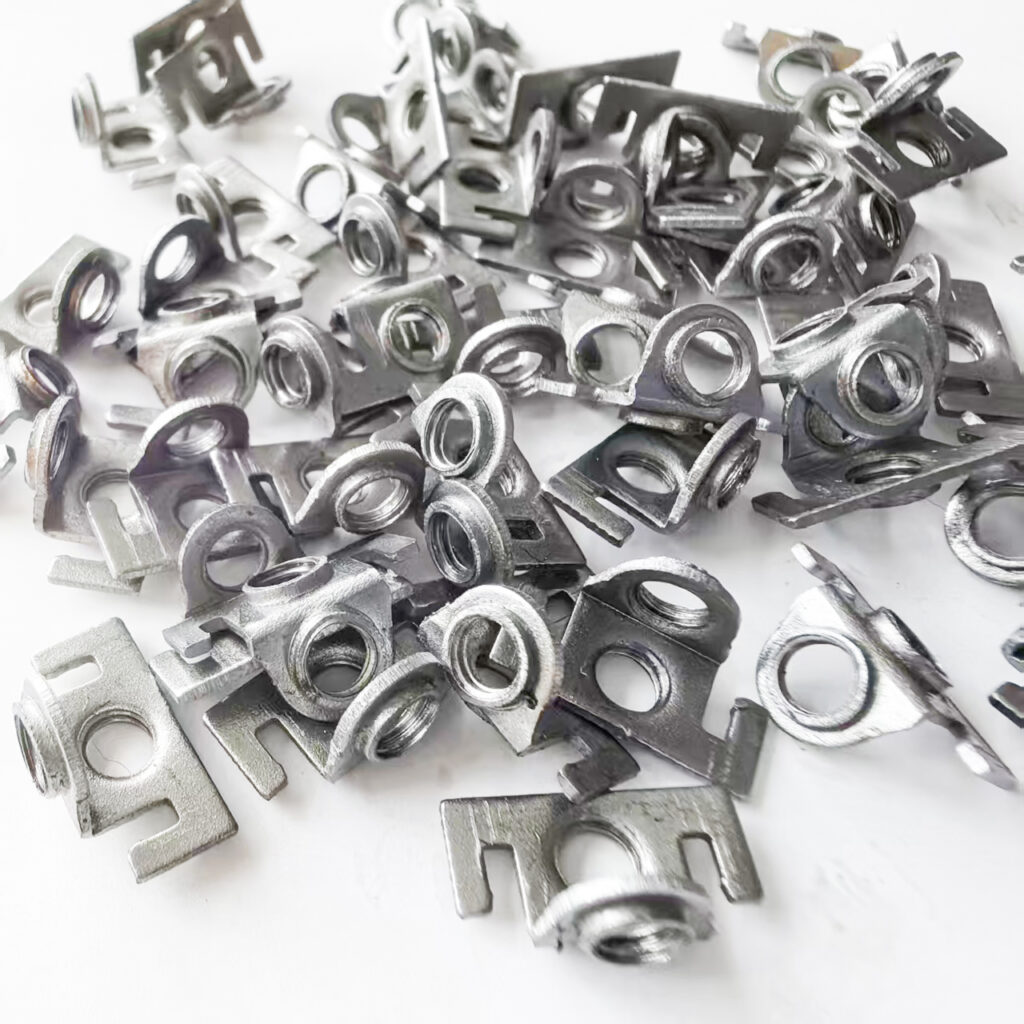

Hardware Part

hardware part-16 threads

Demands

  • 16 – M6*1.0, thread depth 4mm, material: cold rolled plate.
  • Press stroke: 200mm.
  • Production requirement: ≥30 S.P.M

Recommended Machine

*3D Design Display

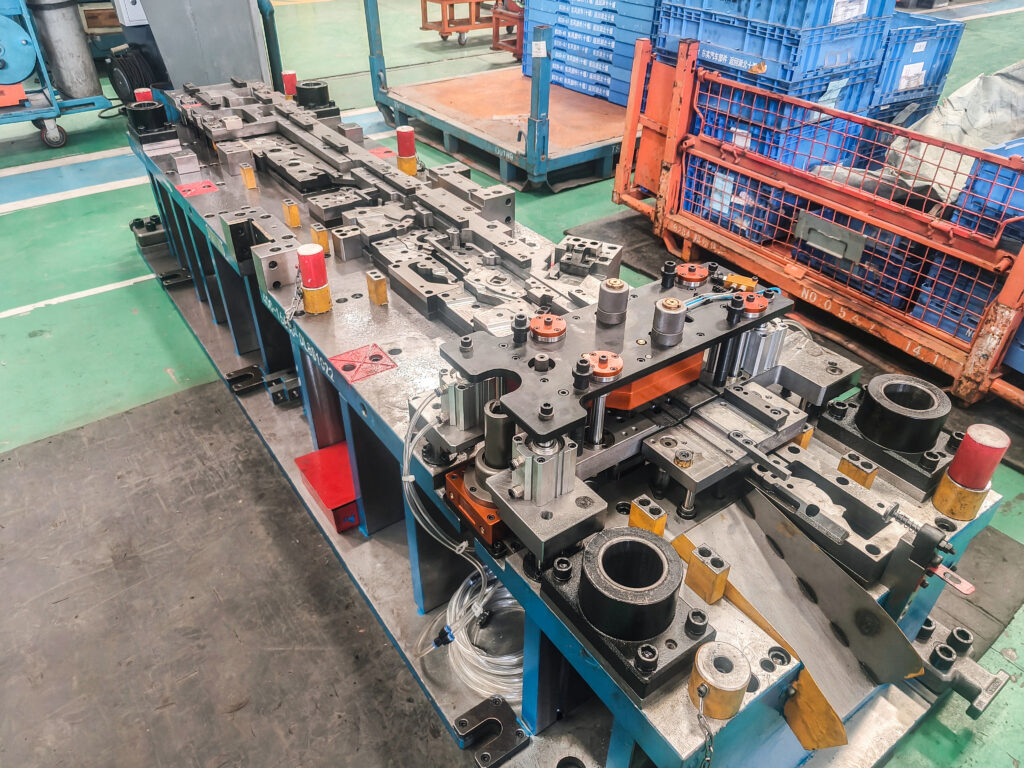

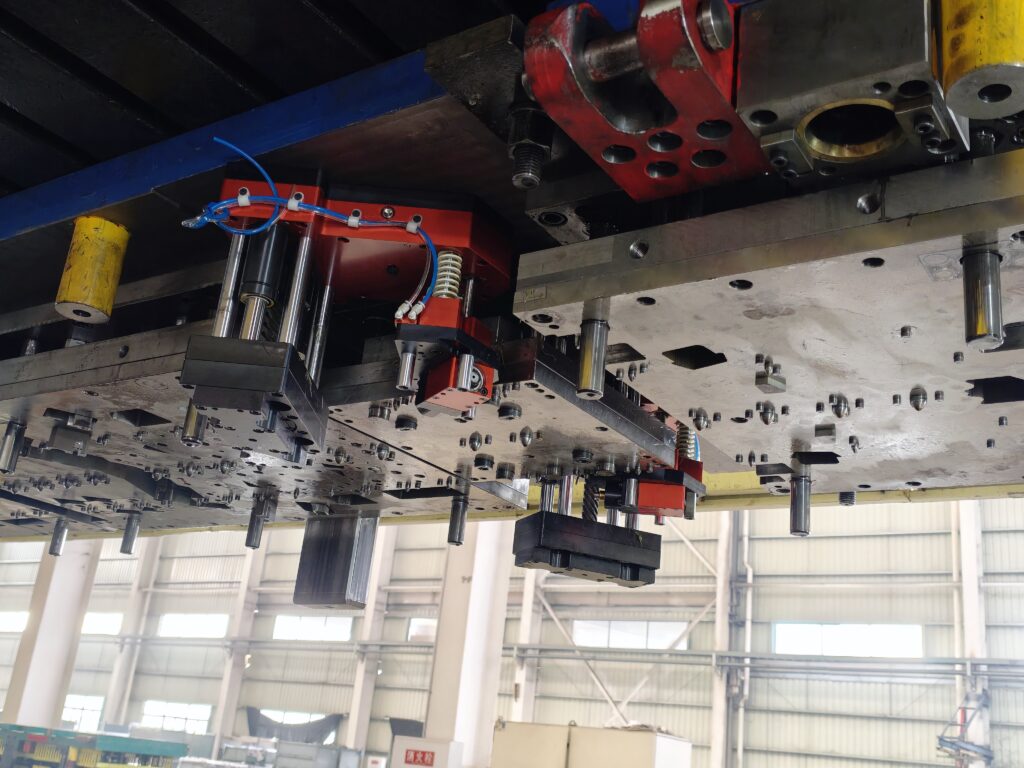

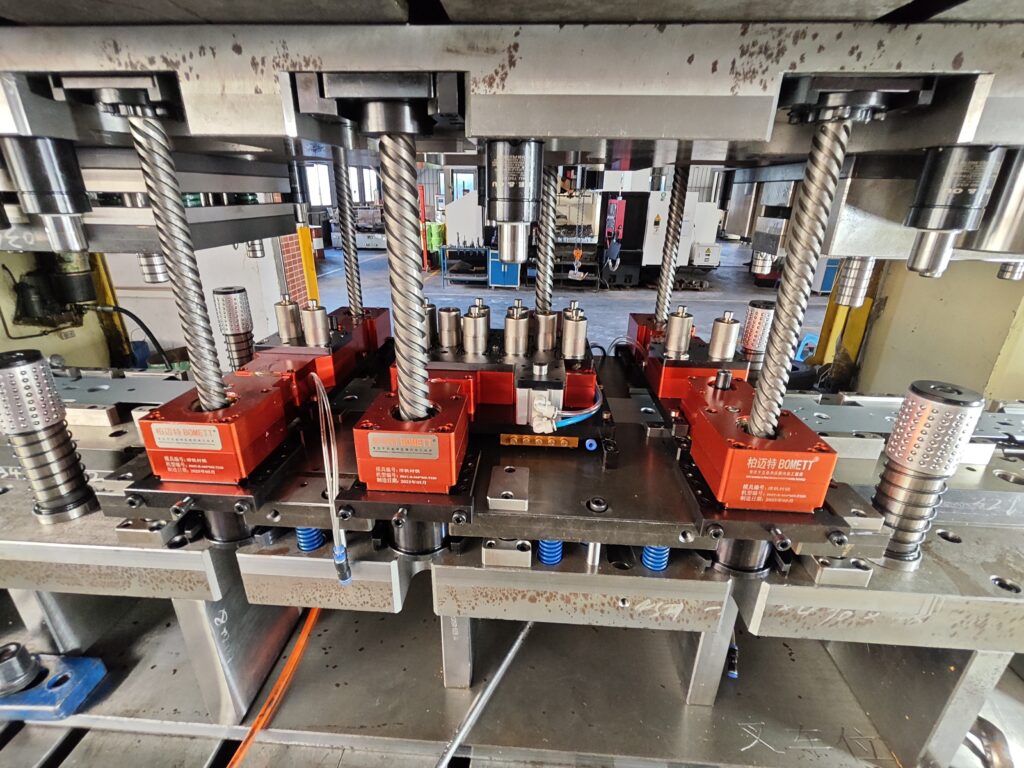

*After Installation

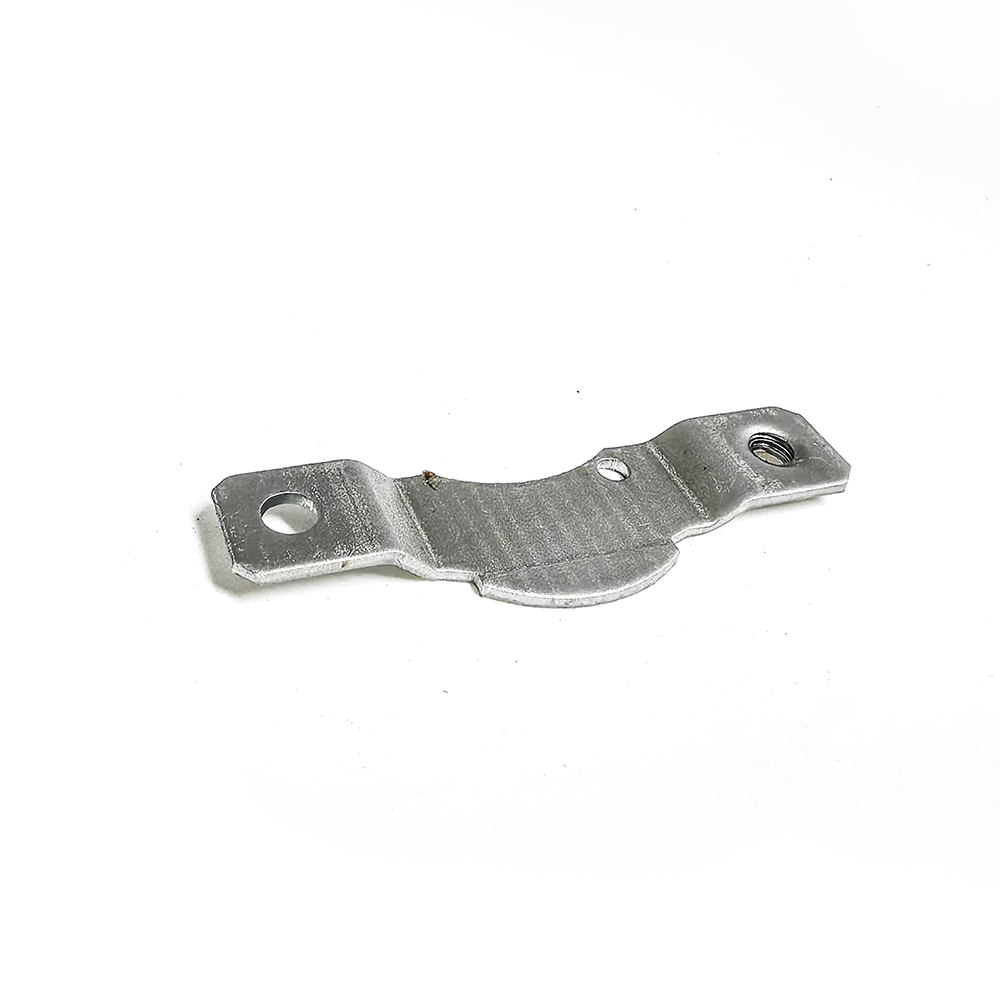

Printer Hardware Application

In-mold Tapping / In-die Tapping

Technical Requirement

  •  2 – M6*1.0, thread depth 3mm, material: SPCC.
  • Press stroke: 120mm.
  • Production requirement is more than 40 S.P.M

Recommended Machine

  • Non-standard customization in-die tapping machine for BK-Z02-M6*1.0-T 120, that adopts quick-release structure.

Production Effect

  • The design production stroke is 60 S.P.M. and the actual mass production speed is 45 S.P.M. Meets the production requirements.
  • Quick-release model, easy and quick to replace taps.
  • Pass the GO and NO GO Thread Plug Gauge.

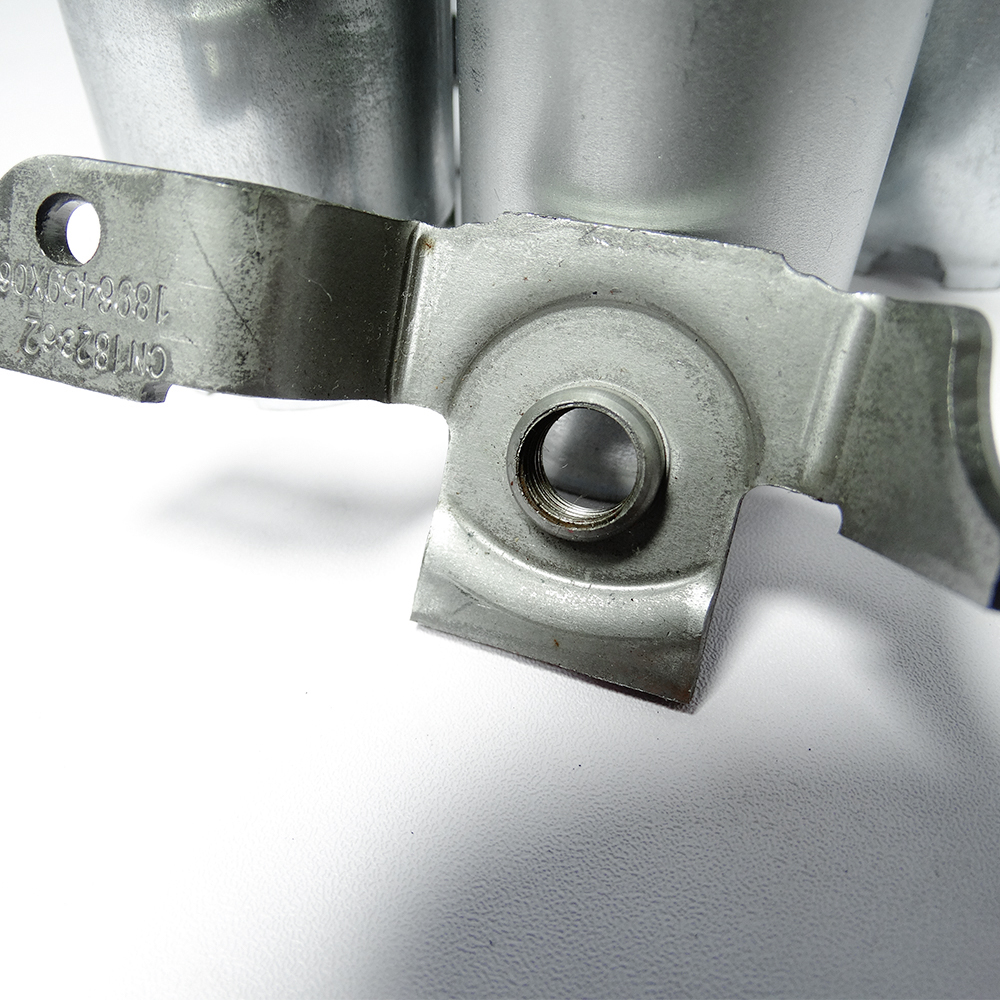

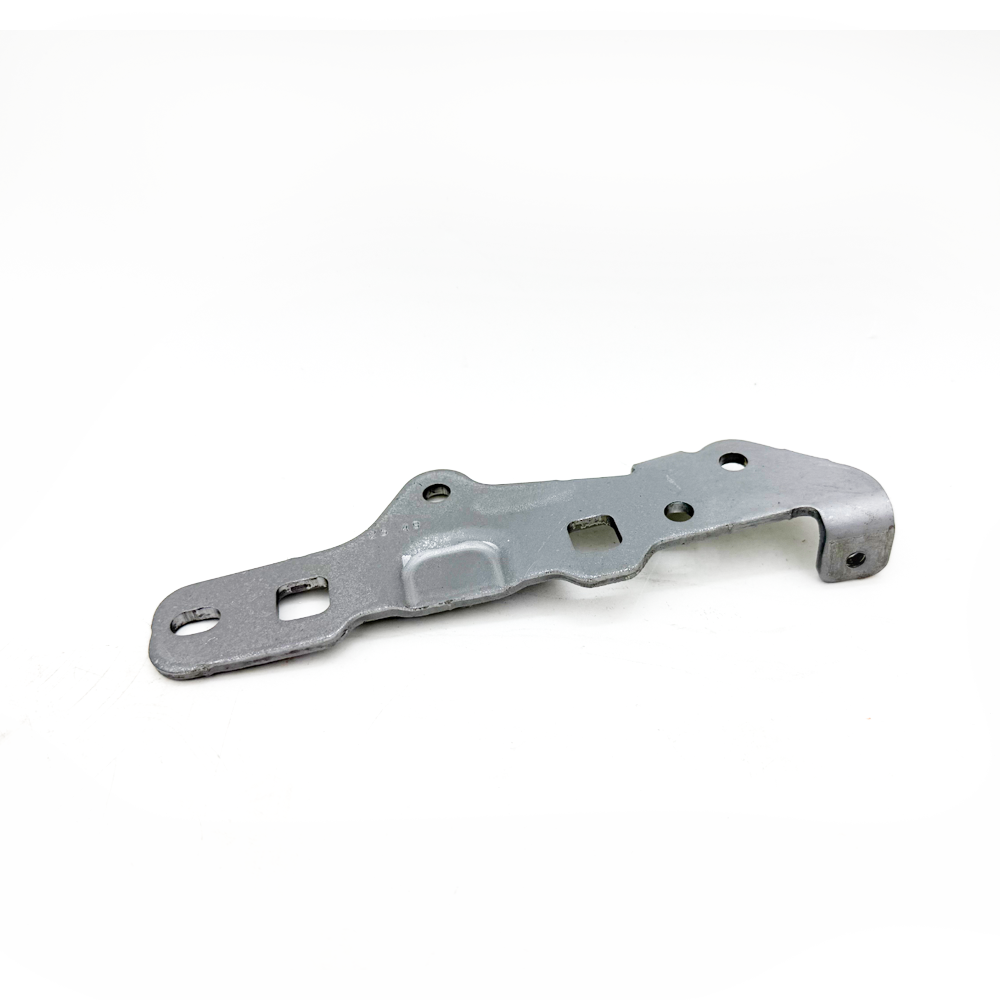

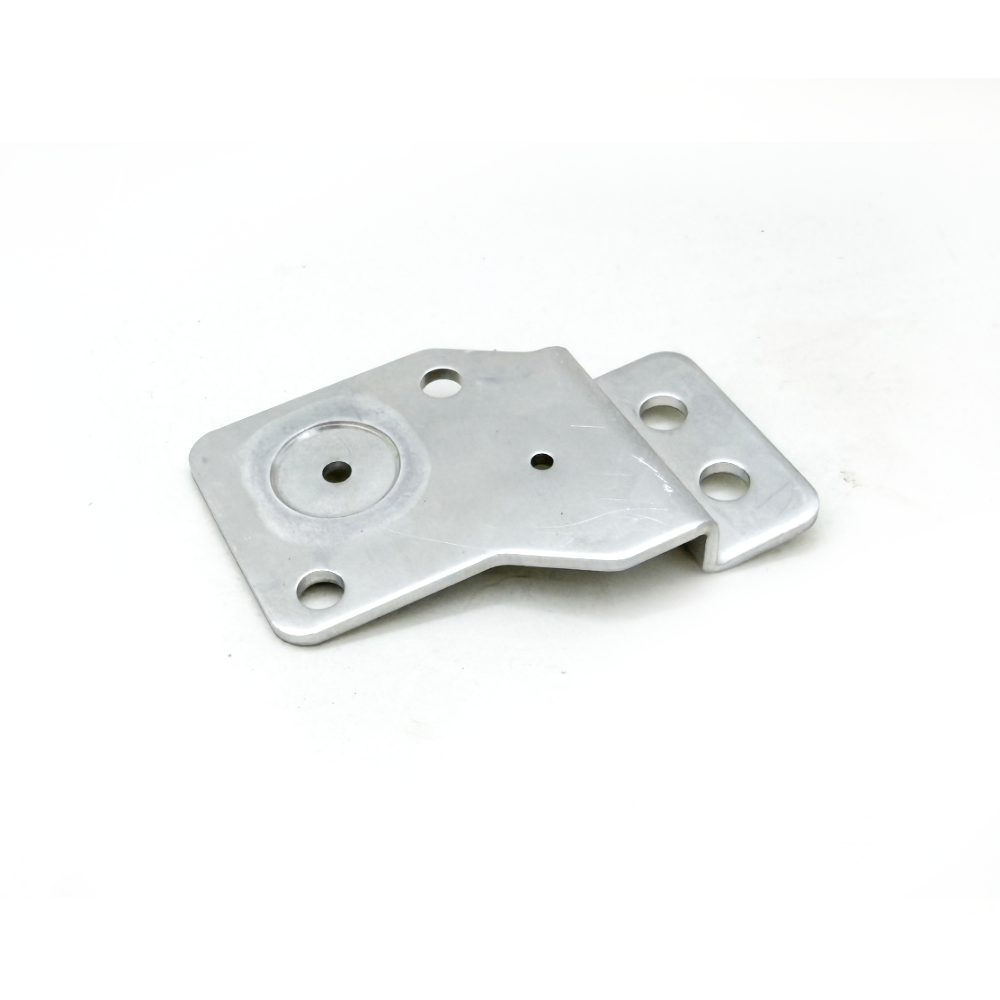

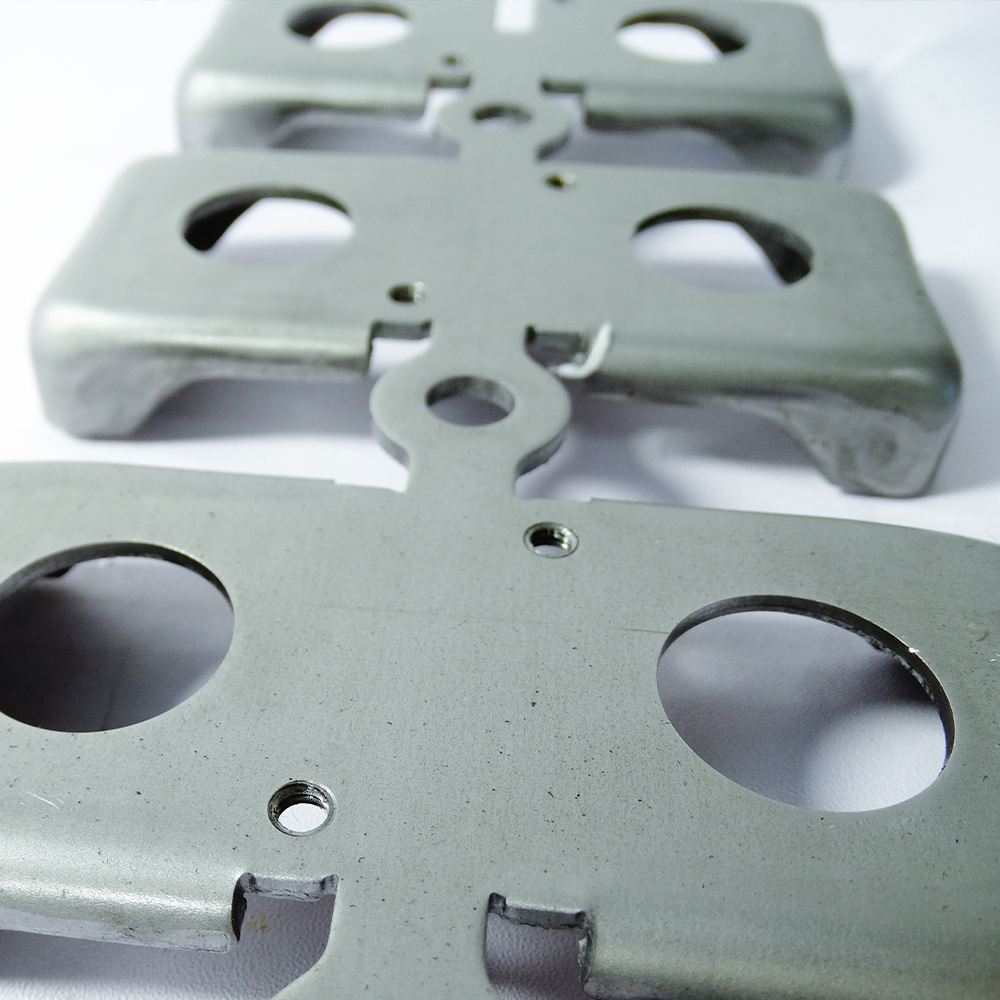

Auto Parts Application

Technical Requirement

  •  2 – M3*0.5, thread depth 3mm, material: galvanized sheet.
  • Press stroke: no punch stroke limited.
  • Production requirement is more than 40 S.P.M

Recommended Machine

  • Non-standard customization in-die tapping machine without stroke limited for BK-IS-M3*0.5.
  • Customized color.

Production Effect

  • The design production stroke is 80 S.P.M. and the actual mass production speed is 40-50 S.P.M. Meets the production requirements.
  • Quick-release model, easy and quick to replace taps.
  • Pass the GO and NO GO Thread Plug Gauge.

BOKE In-mold Tapping Application Display

4 Videos

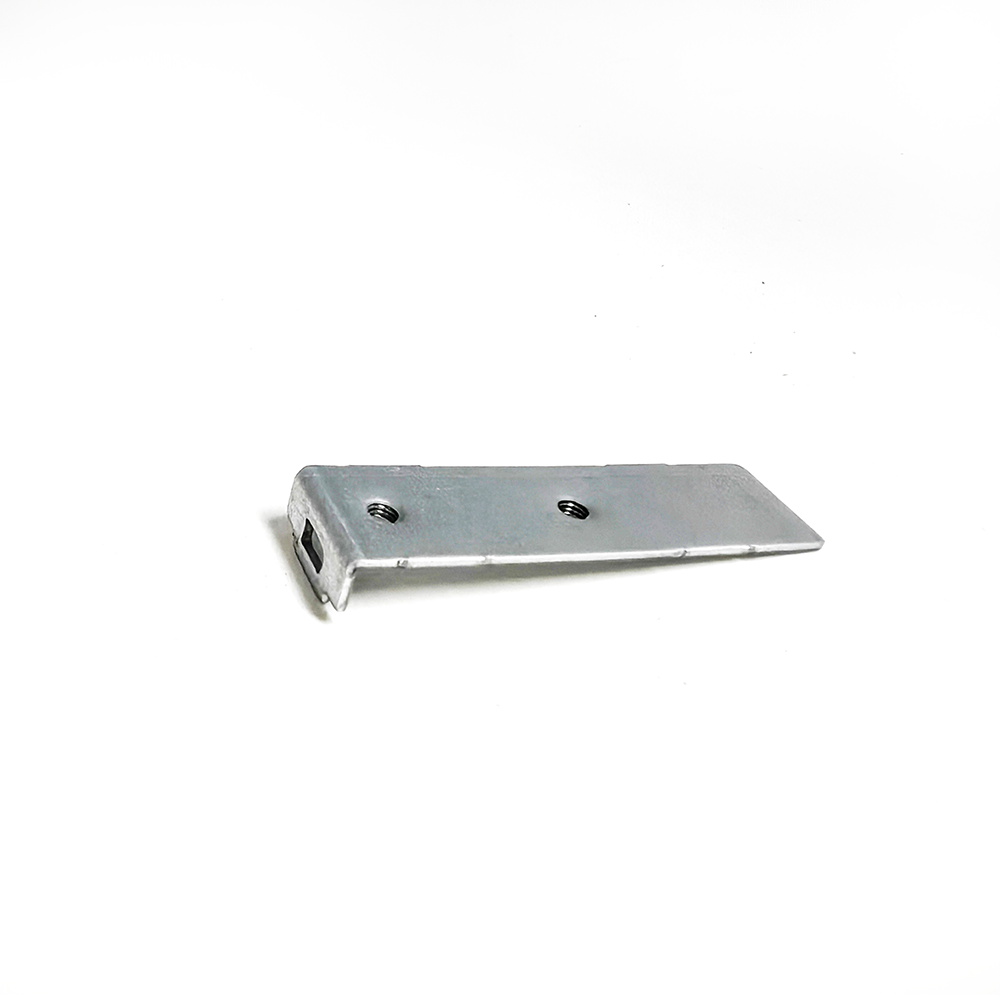

Compressor Accessories Application

Technical Requirement

  • 2- M4*0.7, thread depth 2 mm, material: SPCC.
  • Press stroke: 120mm.
  • Production requirement is more than 20 S.P.M

Recommended Machine

  • Non-standard customization in-die tapping machine for BK-Z04-M4*0.7-T 120, that adopts quick-release structure.

Technical Requirement

  •  2 – M4*0.7, thread depth 2mm, material: SPCC.
  • Press stroke: 120mm.
  • Production requirement is more than 40 S.P.M

BOMETT In-mold Tapping Application Display

4 Videos

Curtain hardware

Demands

  • Requires cutting taps.
  • 2 – M5*0.8, thread depth 3mm, material: 201 stainless steel.
  • Press stroke: 150mm.
  • Production requirement: ≥60 S.P.M

Recommended Machine

  • In order to use cutting taps, the structure of the mold needs to be improved. We adopted the design based on the BK-RN series in-mold tapping unit and made corresponding modifications to the structure.
*Chuck for cutting taps
*Chuck for cutting taps
*Production video
